OB-I-SL/UPB
OB-I-SL/UPB
or
Call 1-866-609-2672
Description
Clamping Type = Pneumatic
Adaption = UPB hole pattern

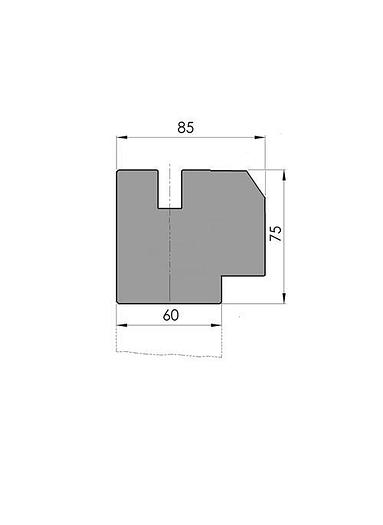

Horizontal Alignment (Tx)
Working height H = 75mm
Width W = 85mm
Max. load = 200ton/m
Custom Style New Standard Pro bottom tool holder with V-lock®., Working height=75mm, Width=85mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Material=C45 not hardened, weight: 36.5kg/m, max.load: 200ton/m.
Specifications
| Condition | New |
| Type/length | OB-I-SL/UPB-1190, OB-I-SL/UPB-1275, OB-I-SL/UPB-1530, OB-I-SL/UPB-2040, OB-I-SL/UPB-2380, OB-I-SL/UPB-2550, OB-I-SL/UPB-3060, OB-I-SL/UPB-3655, OB-I-SL/UPB-4080, OB-I-SL/UPB-4250 |
| Weight | 43.4kg, 46.5kg, 55.8kg, 74.5kg, 86.9kg, 93.1kg, 111.7kg, 133.4kg, 148.9kg, 155.1kg |
