OB-I-SL/ES IV

OB-I-SL/ES IV

or
Call 1-866-609-2672

Description

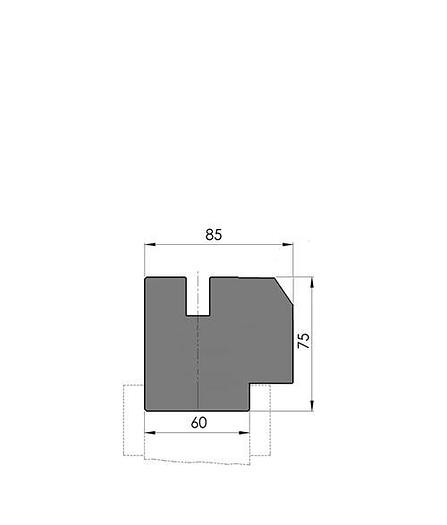

Clamping Type = Pneumatic Adaption = tang Working height H = 80mm Width W = 85mm Max. load = 200ton/m Custom Style New Standard Pro bottom tool holder with V-lock®., Working height=80mm, Width=85mm, provided with Amada adaptation Width=60.00mm, pneumatic clamping, Material=C45 not hardened, weight: 36.5kg/m, max.load: 200ton/m.
Show All

Specifications

ConditionNew
Type/lengthOB-I-SL/ES IV-3060, OB-I-SL/ES IV-3230
Weight128.8kg, 117.9kg
