OB-I-HC/UPB
OB-I-HC/UPB
or
Call 1-866-609-2672
Description
Clamping Type = Hydraulic
Adaption = UPB hole pattern
Horizontal Alignment (Tx)

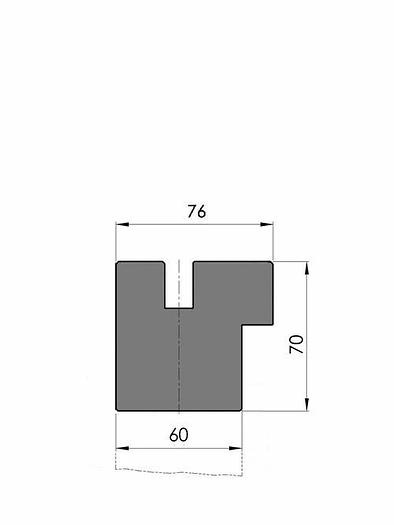

Working height H = 70mm
Width W = 76mm
Max. load = 200ton/m
Custom Style New Standard Pro bottom tool holder, Working height=70mm, Width=76mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Tx-alignment, Material=C45 not hardened, weight: 32.1kg/m, max.load: 200ton/m.Delivery without hydraulic power pack.
Specifications
| Condition | New |
| Type/length | OB-I-HC/UPB-1190, OB-I-HC/UPB-2040, OB-I-HC/UPB-3060, OB-I-HC/UPB-4080 |
| Weight | 38.2kg, 71.4kg, 98.2kg, 142.8kg |
