OB-I-MC-TY/UPB

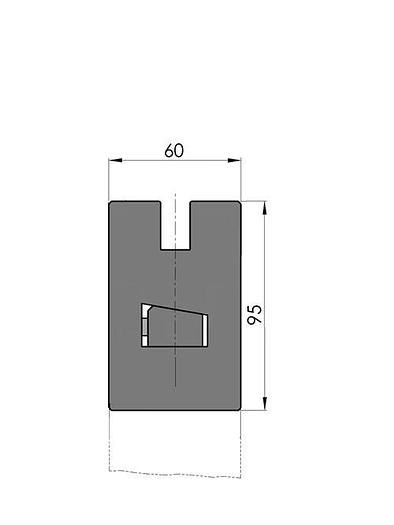

Clamping Type = Mechanical Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Working height H = 95mm Width W = 60mm Custom Style New Standard Pro bottom tool holder, Working height=95mm, Width=60mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25mm, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened.
