OB-I-SL-TY/UPB

OB-I-SL-TY/UPB

or
Call 1-866-609-2672

Description

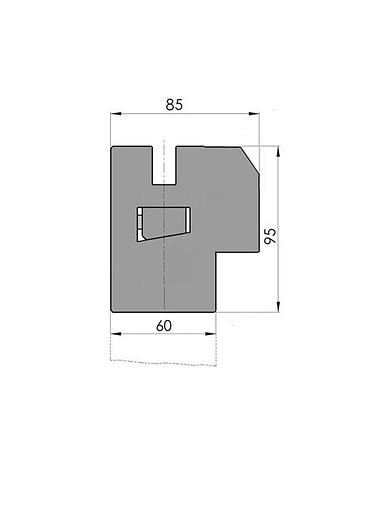

Clamping Type = Pneumatic Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Working height H = 95mm Width W = 85mm Max. load = 200ton/m Custom Style New Standard Pro bottom tool holder with V-lock®., Working height=95mm, Width=85mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, weight: 46.9kg/m, max.load: 200ton/m.
Show All

Specifications

ConditionNew
Type/lengthOB-I-SL-Ty/UPB-1020, OB-I-SL-Ty/UPB-1275, OB-I-SL-Ty/UPB-1530, OB-I-SL-Ty/UPB-2040, OB-I-SL-Ty/UPB-2380 B02, OB-I-SL-Ty/UPB-2550, OB-I-SL-Ty/UPB-3060, OB-I-SL-Ty/UPB-3655 B02, OB-I-SL-Ty/UPB-4080 B02, OB-I-SL-Ty/UPB-4250 B02
Weight47.8kg, 59.8kg, 71.8kg, 95.7kg, 111.6kg, 119.6kg, 143.5kg, 171.4kg, 191.4kg, 199.3kg
