NSCL-I-SL/ES II
NSCL-I-SL/ES II
or
Call 1-866-609-2672
Description
Clamping Type = Pneumatic
Adaption = upper adaptation
Working height H = 80mm
Width W = 92mm
Max. load = 180ton/m

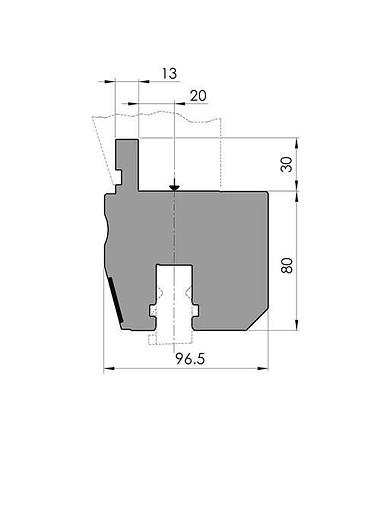

New Standard Pro ClampingWorking height=80mm, Width=92mm, provided with Amada adaptation (center line at 20mm) , pneumatic clamping, left and right rear, Material=C45 not hardened, Max. load=180ton/m.Delivery with coverstrip, and scale ("0" at the left).
Specifications
| Condition | New |
| Type/length | NSCL-I-SL/ES II-1275, NSCL-I-SL/ES II 1530, NSCL-I-SL/ES II 2040, NSCL-I-SL/ES II 2380, NSCL-I-SL/ES II 2550, NSCL-I-SL/ES II 3060, NSCL-I-SL/ES II 3655, NSCL-I-SL/ES II 4080, NSCL-I-SL/ES II 4250 |
| Weight | 57.2kg, 68.7kg, 91.6kg, 106.9kg, 114.5kg, 137.4kg, 164.1kg, 183.2kg, 190.8kg |
