NSCL-I-HC/ES II
NSCL-I-HC/ES II
or
Call 1-866-609-2672
Description
Clamping Type = Hydraulic
Adaption = upper adaptation

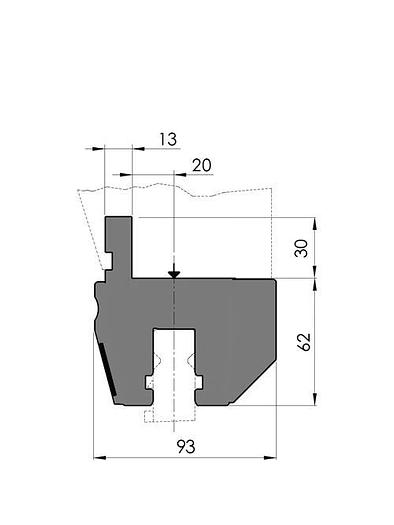

Working height H = 62mm
Width W = 93mm
Max. load = 250ton/m
New Standard Pro ClampingWorking height=62mm, Width=93mm, provided with Amada adaptation (center line at 20mm) , hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened, Weight=28kg/m, Max. load=250ton/m.Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
Specifications
| Condition | New |
| Type/length | NSCL-I-HC/ES II-1190, NSCL-I-HC/ES II-1530, NSCL-I-HC/ES II-1785, NSCL-I-HC/ES II-2040, NSCL-I-HC/ES II-2380, NSCL-I-HC/ES II-2550, NSCL-I-HC/ES II-3060, NSCL-I-HC/ES II-3655, NSCL-I-HC/ES II-4080, NSCL-I-HC/ES II-4250 |
| Weight | 37.6kg, 48.3kg, 56.4kg, 64.5kg, 75.2kg, 80.6kg, 96.7kg, 115.5kg, 128.9kg, 134.3kg |
