NSCL-I-SL-TY/ES II

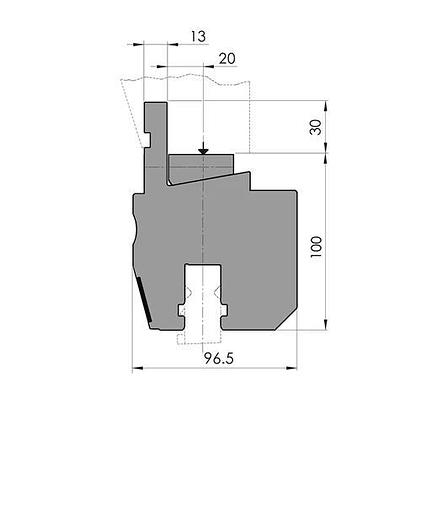

Clamping Type = Pneumatic Adaption = upper adaptation Working height H = 100mm Width W = 92mm Max. load = 180ton/m New Standard Pro ClampingWorking height=100mm, Width=92mm, provided with Amada adaptation (center line at 20mm) with crowning key (Ty-alignment), manually by means of push and pull screws, pneumatic clamping, left and right rear, Material=C45 not hardened, Max. load=180ton/m.Delivery with coverstrip, and scale ("0" at the left).
