NSCL-I-HC-TY/ES II

NSCL-I-HC-TY/ES II

or
Call 1-866-609-2672

Description

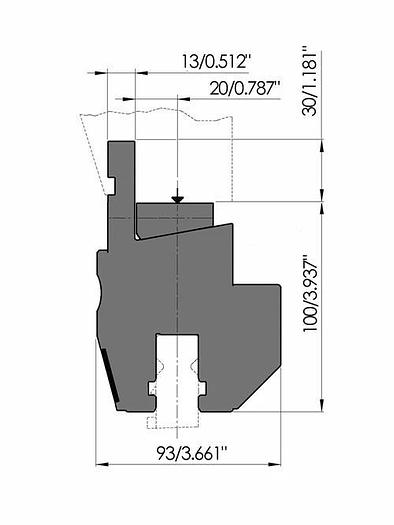

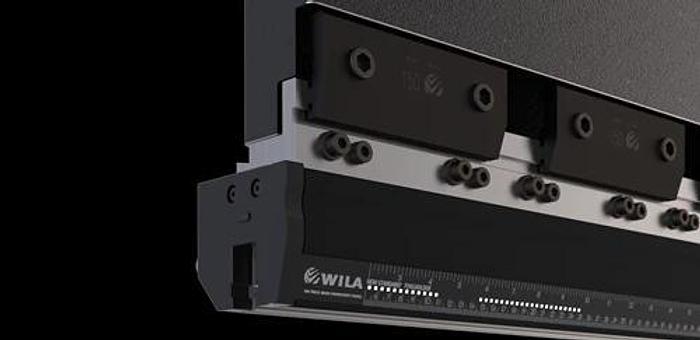

Clamping Type = Hydraulic Adaption = upper adaptation Working height H = 100mm Width W = 93mm Max. load = 250ton/m New Standard Pro ClampingWorking height=100mm, Width=93mm, provided with Amada adaptation (center line at 20mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened, Weight=48kg/m, Max. load=250ton/m.Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
Show All

Specifications

ConditionNew
Type/lengthNSCL-I-HC-TY/ES II-1190, NSCL-I-HC-TY/ES II-1530, NSCL-I-HC-TY/ES II-1785, NSCL-I-HC-TY/ES II-2040, NSCL-I-HC-TY/ES II-2380, NSCL-I-HC-TY/ES II-2550, NSCL-I-HC-TY/ES II-3060, NSCL-I-HC-Ty/ES II-3655, NSCL-I-HC-TY/ES II-4080, NSCL-I-HC-TY/ES II-4250
Weight58.1kg, 74.7kg, 87.1kg, 99.6kg, 116.1kg, 124.4kg, 149.3kg, 178.4kg, 199.1kg, 207.4kg
