NSCL-I-MC/ES I
NSCL-I-MC/ES I
or
Call 1-866-609-2672
Description
Clamping Type = Mechanical
Adaption = upper adaptation
Working height H = 62mm
Width W = 61mm
Max. load = 250ton/m

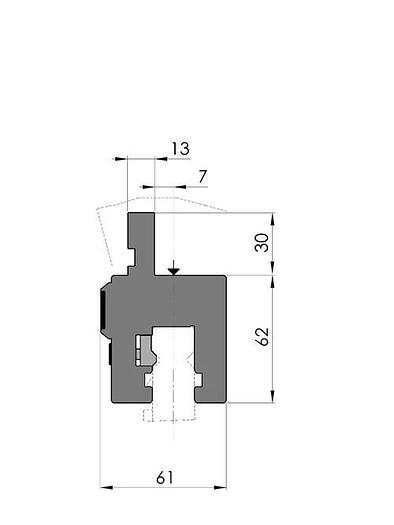

New Standard Pro ClampingWorking height=62mm, Width=61mm, provided with Amada adaptation (center line at 7mm) , mechanical clamping by means of clamping bars, Material=C45 not hardened, Weight=23.5kg/m, Max. load=250ton/m.Delivery with coverstrip and scale ("0" at the left).Delivery without guards.
Specifications
| Condition | New |
| Type/length | NSCL-I-MC/ES I-1190, NSCL-I-MC/ES I-2040, NSCL-I-MC/ES I-2380, NSCL-I-MC/ES I-2550, NSCL-I-MC/ES I-3060, NSCL-I-MC/ES I-4080, NSCL-I-MC/ES I-4250 |
| Weight | 28.7kg, 49.2kg, 57.4kg, 61.5kg, 73.7kg, 98.3kg, 102.4kg |
