OB-953
OB-953
or
Call 1-866-609-2672
Description
Clamping Type = Mechanical
Adaption =

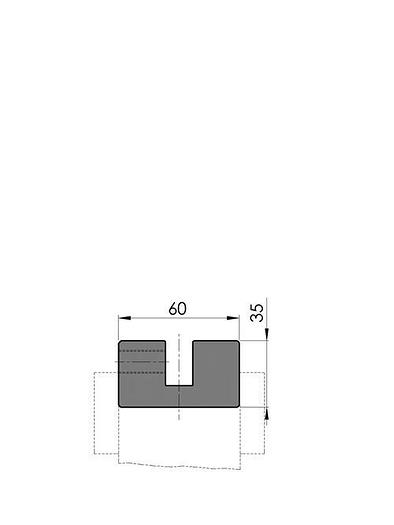

Working height H = 35mm
Width W = 60mm
Max. load = 200ton/m
Custom Style bottom tool holder, Working height=35mm, Width=60mm, mechanical clamping by means of set screws M12 pitch 100mm with centre 1000mm pitch 25mm, Material=C45, weight: 14.65kg/m, max.load: 200ton/m.
Specifications
| Condition | New |
| Type/length | OB-953/1020, OB-953/1530, OB-953/2040, OB-953/2550, OB-953/3060, OB-953/3655 |
| Weight | 14.8kg, 22.4kg, 29.9kg, 37.4kg, 44.8kg, 53.5kg |
