OB-HD-II-HC/UPB

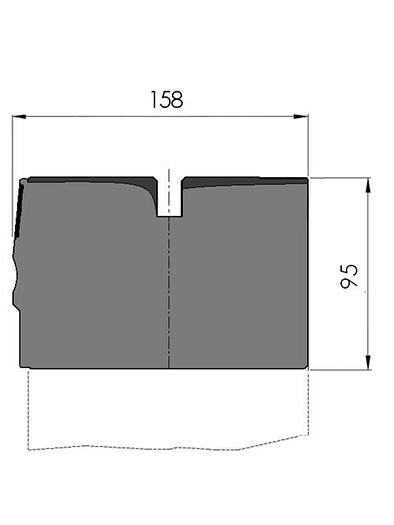

Clamping Type = Hydraulic Adaption = UPB-VI Working height H = 95mm Width W = 158mm Max. load = 800ton/m New Standard Premium bottom tool holderUPB-VI, , Working height=95mm, Width=158mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0377026, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Tx-alignment, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 105kg/m, max.load: 800ton/m.Delivery with coverstrip, hardenend guards and scale (front side, Inch-metric, "0" at the left). Delivery without hydraulic power pack.
