OB-II-MC/ES IV

OB-II-MC/ES IV

or
Call 1-866-609-2672

Description

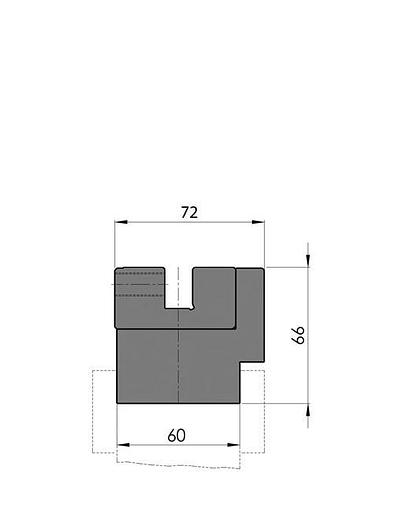

Clamping Type = Mechanical Adaption = tang Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 66mm Width W = 72mm Custom Style New Standard Premium bottom tool holder, Working height=66mm, Width=72mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 25,5mm, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).hardenend
Show All

Specifications

ConditionNew
Type/lengthOB-II-MC/ES IV-1190, OB-II-MC/ES IV-1530, OB-II-MC/ES IV-1785, OB-II-MC/ES IV-2040, OB-II-MC/ES IV-2380, OB-II-MC/ES IV-2550, OB-II-MC/ES IV-3060, OB-II-MC/ES IV-3655, OB-II-MC/ES IV-4080, OB-II-MC/ES IV-4250
