OB-II-MC/UPB

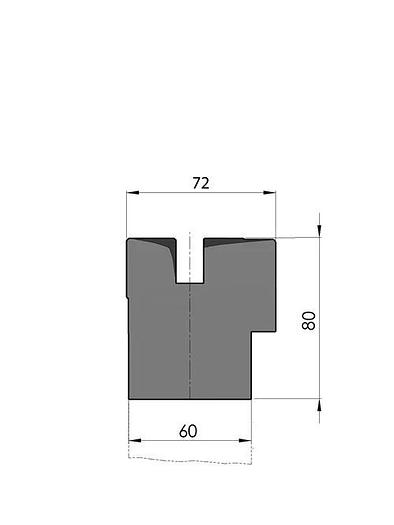

Clamping Type = Mechanical Adaption = UPB hole pattern Horizontal Alignment (Tx) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 80mm Width W = 72mm Max. load = 300ton/m Custom Style New Standard Premium bottom tool holder, Working height=80mm, Width=72mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 25,5mm, Tx-alignment, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 38.5kg/m, max.load: 300ton/m.hardenend
