OB-II-SL/UPB

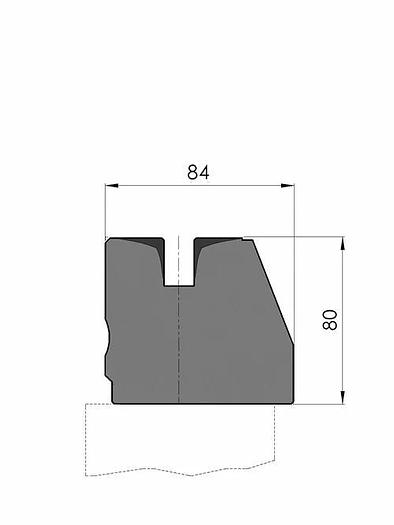

Clamping Type = Pneumatic Adaption = UPB hole pattern Horizontal Alignment (Tx) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 80mm Width W = 84mm Max. load = 200ton/m Custom Style New Standard Premium bottom tool holder, Working height=80mm, Width=84mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 30kg/m, max.load: 200ton/m.Delivery with coverstrip, hardenend guards and scale (front side, Inch-metric, "0" at the left).
