OB-II-HC-TY/UPB

OB-II-HC-TY/UPB

or
Call 1-866-609-2672

Description

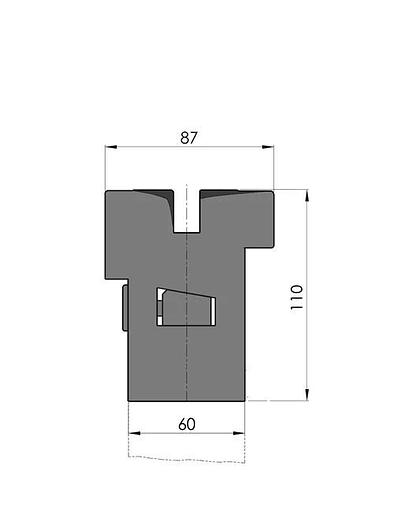

Clamping Type = Hydraulic Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 110mm Width W = 87mm Max. load = 300ton/m Custom Style New Standard Premium bottom tool holder, Working height=110mm, Width=87mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 53.1kg/m, max.load: 300ton/m.hardenend Delivery without hydraulic power pack.
Show All

Specifications

ConditionNew
Type/lengthOB-II-HC-Ty/UPB-1190, OB-II-HC-Ty/UPB-1530, OB-II-HC-Ty/UPB-1785, OB-II-HC-Ty/UPB-2040, OB-II-HC-Ty/UPB-2380, OB-II-HC-Ty/UPB-2550, OB-II-HC-Ty/UPB-3060, OB-II-HC-Ty/UPB-3655, OB-II-HC-Ty/UPB-4080, OB-II-HC-Ty/UPB-4250
Weight63.2kg, 81.2kg, 94.8kg, 108.3kg, 126.4kg, 135.4kg, 162.5kg, 194.1kg, 216.6kg, 225.7kg
