OB-II-MC-TY/UPB

OB-II-MC-TY/UPB

or
Call 1-866-609-2672

Description

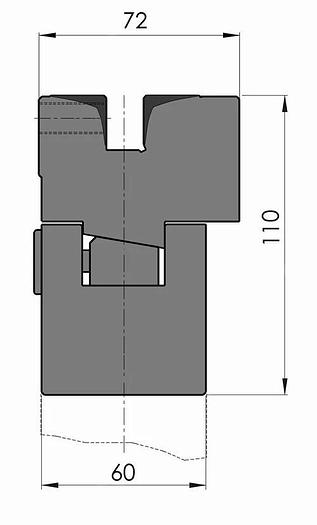

Clamping Type = Mechanical Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 110mm Width W = 72mm Max. load = 300ton/m Custom Style New Standard Premium bottom tool holder, Working height=110mm, Width=72mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 25,5mm, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 42.5kg/m, max.load: 300ton/m.hardenend
Show All

Specifications

ConditionNew
Type/lengthOB-II-MC-Ty/UPB-1190, OB-II-MC-Ty/UPB-1530, OB-II-MC-Ty/UPB-1785, OB-II-MC-Ty/UPB-2040, OB-II-MC-Ty/UPB-2380, OB-II-MC-Ty/UPB-2550, OB-II-MC-Ty/UPB-3060, OB-II-MC-Ty/UPB-3655, OB-II-MC-Ty/UPB-4080, OB-II-MC-Ty/UPB-4250
Weight50.6kg, 65.0kg, 75.9kg, 86.7kg, 101.2kg, 108.4kg, 130.1kg, 155.3kg, 173.4kg, 180.6kg
