NSCR-HD-I-MC-150-CNC/UPB

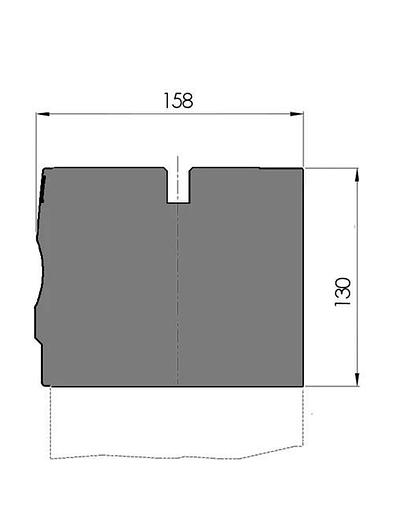

Clamping Type = Mechanical Adaption = UPB-VI Working height H = 130mm Width W = 158mm Max. load = 500ton/m New Standard Pro CrowningUPB-VI, , Working height=130mm, Width=158mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0377026, mechanical clamping by means of set screws M12 pitch 100mm with centre 1000mm pitch 100mm. Crowning: CRM12 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Material=C45 not hardened, max.load: 500ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left). Delivery without guards and mounting hardware.
