NSCR-I-SL-CNC/UPB

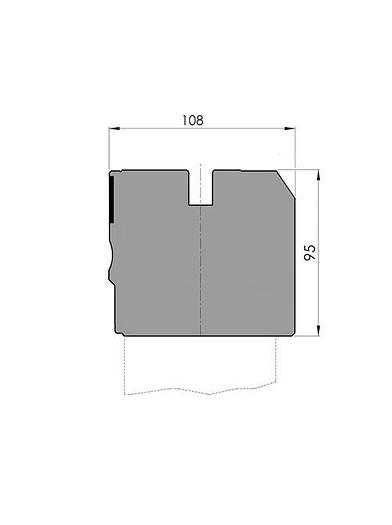

Clamping Type = Pneumatic Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Working height H = 95mm Width W = 100mm Max. load = 200ton/m New Standard Pro Crowning with V-lock®., Working height=95mm, Width=100mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping. Crowning: CRM7 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=C45 not hardened, weight: 60kg/m, max.load: 200ton/m.Delivery with coverstrip, guards and scale (front side, Inch-metric, "0" at the left).
