NSCL-I-SL/ES I
NSCL-I-SL/ES I
or
Call 1-866-609-2672
Description
Clamping Type = Pneumatic
Adaption = upper adaptation
Working height H = 80mm
Width W = 92mm
Max. load = 180ton/m

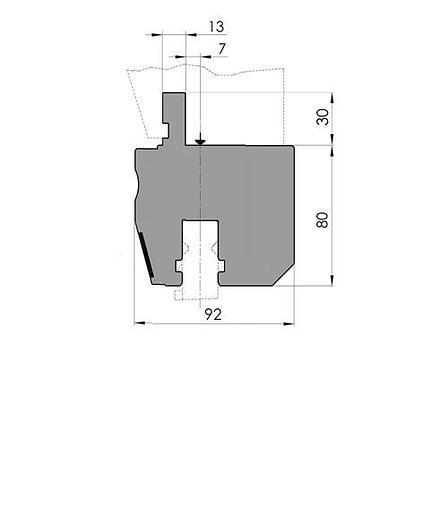

New Standard Pro ClampingWorking height=80mm, Width=92mm, provided with Amada adaptation (center line at 7mm) , pneumatic clamping, left and right rear, Material=C45 not hardened, Max. load=180ton/m.Delivery with coverstrip, and scale ("0" at the left).
Specifications
| Condition | New |
| Type/length | NSCL-I-SL/ES I-1275, NSCL-I-SL/ES I 1530, NSCL-I-SL/ES I 2040, NSCL-I-SL/ES I 2380, NSCL-I-SL/ES I 2550, NSCL-I-SL/ES I 3060, NSCL-I-SL/ES I 3655, NSCL-I-SL/ES I 4080, NSCL-I-SL/ES I 4250 |
| Weight | 53.6kg, 64.3kg, 85.7kg, 100.0kg, 107.1kg, 128.5kg, 153.5kg, 171.4kg, 178.5kg |
