NSCL-I-HC-TY/ES I

NSCL-I-HC-TY/ES I

or
Call 1-866-609-2672

Description

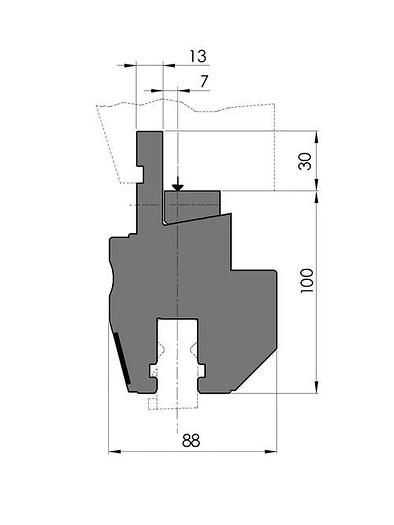

Clamping Type = Hydraulic Adaption = upper adaptation Working height H = 100mm Width W = 88mm Max. load = 250ton/m New Standard Pro ClampingWorking height=100mm, Width=88mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right end, Material=C45 not hardened, Weight=46kg/m, Max. load=250ton/m.Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
Show All

Specifications

ConditionNew
Type/lengthNSCL-I-HC-TY/ES I-1190, NSCL-I-HC-TY/ES I-1530, NSCL-I-HC-TY/ES I-1785, NSCL-I-HC-TY/ES I-2040, NSCL-I-HC-TY/ES I-2380, NSCL-I-HC-TY/ES I-2550, NSCL-I-HC-TY/ES I-3060, NSCL-I-HC-TY/ES I-3655, NSCL-I-HC-TY/ES I-4080, NSCL-I-HC-TY/ES I-4250
Weight51.8kg, 66.6kg, 77.6kg, 88.7kg, 103.5kg, 110.9kg, 133.1kg, 159.0kg, 177.5kg, 184.9kg
