NSCL-I-MC-TY/ES I

NSCL-I-MC-TY/ES I

or
Call 1-866-609-2672

Description

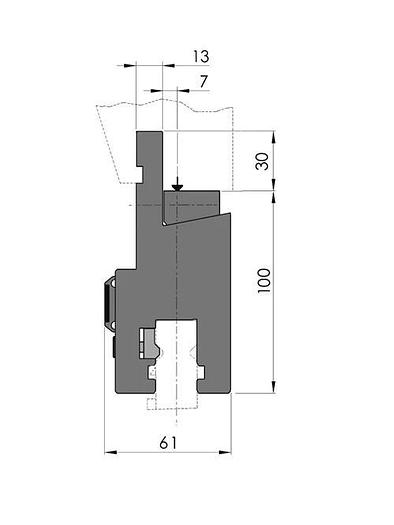

Clamping Type = Mechanical Adaption = upper adaptation Working height H = 100mm Width W = 61mm New Standard Pro ClampingWorking height=100mm, Width=61mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, mechanical clamping by means of clamping bars, Material=C45 not hardened.Delivery with coverstrip and scale ("0" at the left).Delivery without guards.
Show All

Specifications

ConditionNew
Type/lengthNSCL-I-MC-Ty/ES-I-1190, NSCL-I-MC-Ty/ES I-1530, NSCL-I-MC-Ty/ES I-2040, NSCL-I-MC-Ty/ES I-2550, NSCL-I-MC-Ty/ES I-3060, NSCL-I-MC-Ty/ES I-3655, NSCL-I-MC-Ty/ES I-4080, NSCL-I-MC-Ty/ES I-4250
Weight35.2kg, 45.3kg, 60.4kg, 75.5kg, 90.6kg, 108.2kg, 120.8kg, 125.8kg
