NSCL-I-SL-TY/ES I

NSCL-I-SL-TY/ES I

or
Call 1-866-609-2672

Description

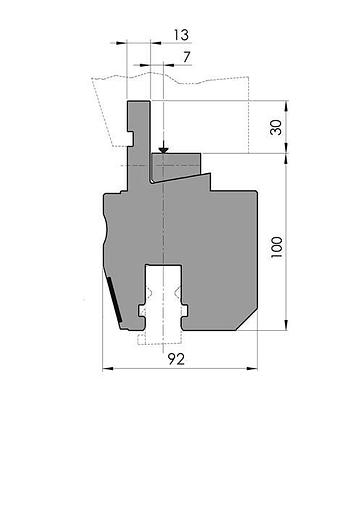

Clamping Type = Pneumatic Adaption = upper adaptation Working height H = 100mm Width W = 92mm Max. load = 180ton/m New Standard Pro ClampingWorking height=100mm, Width=92mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, pneumatic clamping, left and right end, Material=C45 not hardened, Max. load=180ton/m.Delivery with coverstrip, and scale ("0" at the left).
Show All

Specifications

ConditionNew
Type/lengthNSCL-I-SL-Ty/ES I 1190, NSCL-I-SL-Ty/ES I 1275, NSCL-I-SL-Ty/ES I 1530, NSCL-I-SL-Ty/ES I 2040, NSCL-I-SL-Ty/ES I 2380, NSCL-I-SL-Ty/ES I 2550, NSCL-I-SL-Ty/ES I 3060, NSCL-I-SL-Ty/ES I 3655, NSCL-I-SL-Ty/ES I-4080, NSCL-I-SL-Ty/ES I 4250
Weight57.8kg, 62.0kg, 74.4kg, 99.1kg, 115.7kg, 123.9kg, 148.7kg, 177.6kg, 198.3kg, 206.6kg
