NSCL-I-MC/UPB
NSCL-I-MC/UPB
or
Call 1-866-609-2672
Description
Clamping Type = Mechanical
Adaption = UPB

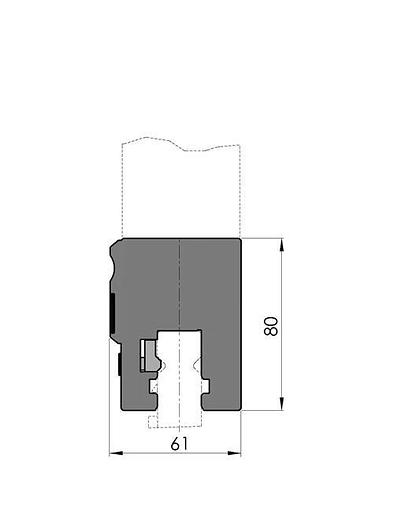

Working height H = 80mm
Width W = 61mm
New Standard Pro ClampingWorking height=80mm, Width=61mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, mechanical clamping by means of clamping bars, Material=C45 not hardened.Delivery with coverstrip and scale ("0" at the left).Delivery without guards.
Specifications
| Condition | New |
| Type/length | NSCL-I-MC/UPB-1190, NSCL-I-MC/UPB-1530, NSCL-I-MC/UPB-1785, NSCL-I-MC/UPB-2550, NSCL-I-MC/UPB-4080, NSCL-I-MC/UPB-4250 |
| Weight | 34.2kg, 43.9kg, 51.2kg, 73.2kg, 117.1kg, 122.0kg |
