NSCL-I-SL/UPB
NSCL-I-SL/UPB
or
Call 1-866-609-2672
Description
Clamping Type = Pneumatic
Adaption = UPB

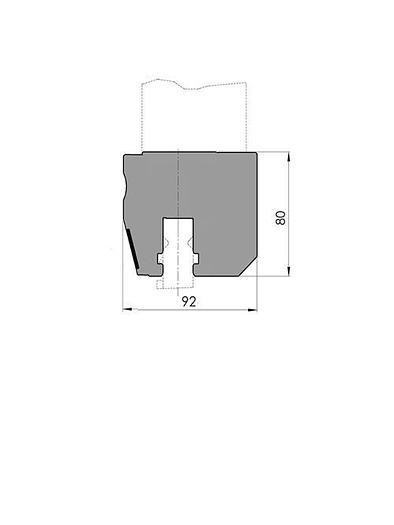

Working height H = 80mm
Width W = 92mm
Max. load = 180ton/m
New Standard Pro ClampingWorking height=80mm, Width=92mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, pneumatic clamping, left and right end, Material=C45 not hardened, Weight=19kg/m, Max. load=180ton/m.Delivery with coverstrip, and scale ("0" at the left).
Specifications
| Condition | New |
| Type/length | NSCL-I-SL/UPB-1530, NSCL-I-SL/UPB-1275, NSCL-I-SL/UPB-2040, NSCL-I-SL/UPB 3060, NSCL-I-SL/UPB 2380, NSCL-I-SL/UPB-2550, NSCL-I-SL/UPB 3655, NSCL-I-SL/UPB 4080, NSCL-I-SL/UPB 4250 |
| Weight | 57.7kg, 48.1kg, 76.9kg, 115.4kg, 89.7kg, 96.1kg, 137.8kg, 153.8kg, 160.2kg |
