NSCL-HD-II-HC/UPB

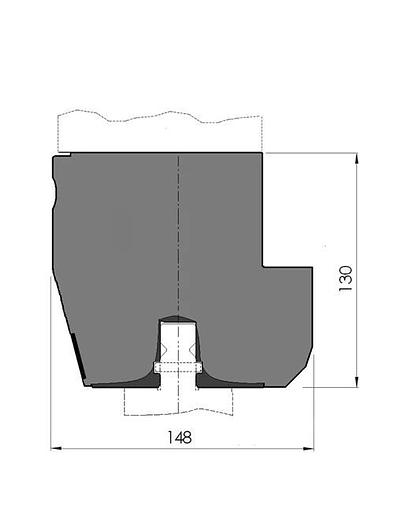

Clamping Type = Hydraulic Adaption = UPB-IV Working height H = 130mm Width W = 148mm Max. load = 800ton/m New Standard Premium 'HD' Heavy Duty ClampingWorking height=130mm, Width=148mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0206292 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left top, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=114.7kg/m, Max. load=800ton/m.Delivery with coverstrip, and scale ("0" at the left).Delivery without hydraulic power pack.
