NSCL-II-MC/UPB
NSCL-II-MC/UPB
or
Call 1-866-609-2672
Description
Clamping Type = Mechanical
Adaption = UPB
Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

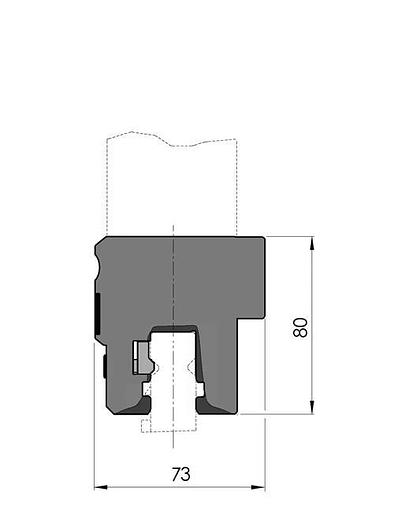

Working height H = 80mm
Width W = 73.3mm
Max. load = 300ton/m
New Standard Premium ClampingWorking height=80mm, Width=73.3mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, mechanical clamping by means of clamping bars, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=31kg/m, Max. load=300ton/m.Delivery with coverstrip, and scale ("0" at the left).
Specifications
| Condition | New |
| Type/length | NSCL-II-MC/UPB-1190, NSCL-II-MC/UPB-1530, NSCL-II-MC/UPB-1785, NSCL-II-MC/UPB-2040, NSCL-II-MC/UPB-2380, NSCL-II-MC/UPB-2550, NSCL-II-MC/UPB-3060, NSCL-II-MC/UPB-3655, NSCL-II-MC/UPB-4080, NSCL-II-MC/UPB-4250 |
| Weight | 38.7kg, 49.7kg, 58.0kg, 66.3kg, 77.4kg, 79.1kg, 99.5kg, 118.8kg, 132.6kg, 138.1kg |
