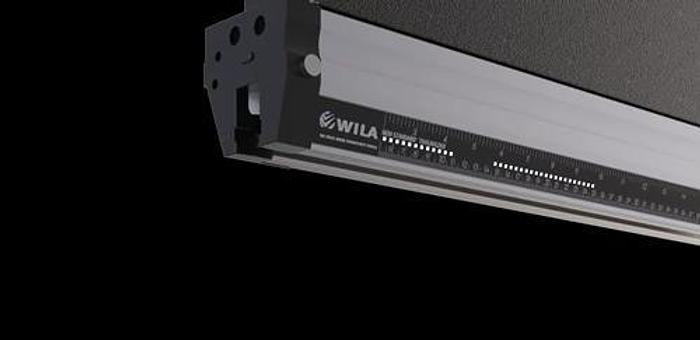

NSCL-II-HC/UPB

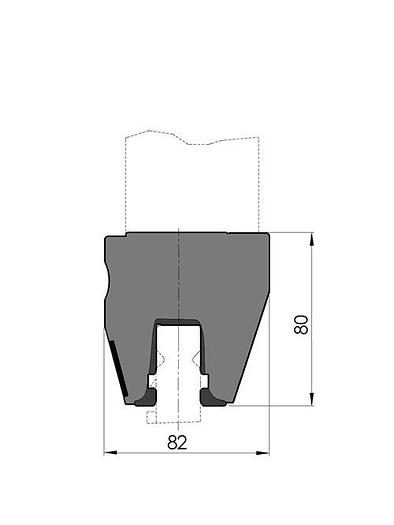

Clamping Type = Hydraulic Adaption = UPB Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 80mm Width W = 82mm Max. load = 300ton/m New Standard Premium ClampingWorking height=80mm, Width=82mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right (top and rear), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=32kg/m, Max. load=300ton/m.Delivery with coverstrip, and scale ("0" at the left).Delivery without hydraulic power pack.
