NSCL-II-SL/UPB

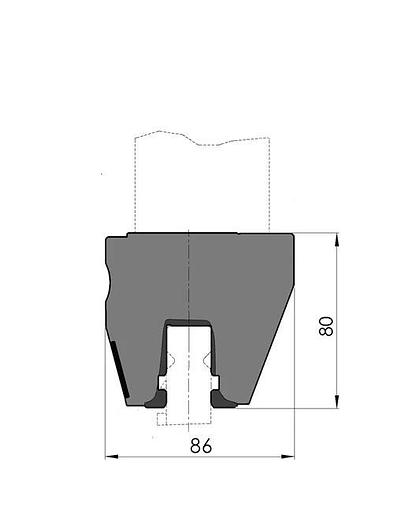

Clamping Type = Pneumatic Adaption = UPB Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 80mm Width W = 86mm Max. load = 200ton/m New Standard Premium ClampingWorking height=80mm, Width=86mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, pneumatic clamping, left and right rear, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=33kg/m, Max. load=200ton/m.Delivery with coverstrip, hardened and scale ("0" at the left).
