TSU-020

TSU-020
or
Call 1-866-609-2672
Description

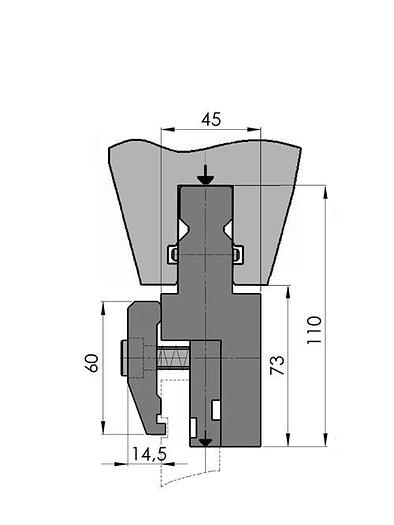

Adapter for New Standard to European Style I (ES I) or American Style (AS)
Working height = 73mm
Width W = 61.5mm
Material = C45, not hardened
Max. load = 100ton/m
Delivery with clamping plate TK-031
Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
New Standard adapter/extenderWorking height=73mm, Width=61.5mm, Material=C45, not hardened, Weight: 30.16kg/m, Max. load=100ton/m.Delivery with: clamping plate TK-031.Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally.Adapter for New Standard to European Style I (ES I) or American Style (AS)
Specifications
Condition | New |
Type/length | TSU-020/1 515mm, TSU-020/4 150mm, TSU-E2M-020/1 515mm |
Safety | Safety pins, E2M® |
Weight | 30.16kg/m |
Weight | 30.16kg/m |
