TSU-022

TSU-022

Description

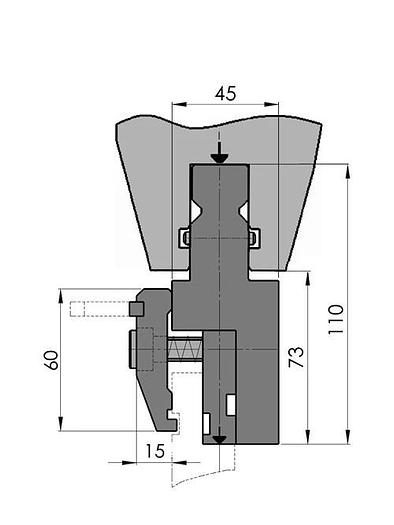

Adapter for New Standard to European Style I (ES I) or American Style (AS) Working height = 73mm Width W = 62mm Material = C45, not hardened Max. load = 100ton/m Delivery with clamping plate TK-033 Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally. New Standard adapter/extenderWorking height=73mm, Width=62mm, Material=C45, not hardened, Weight: 30.16kg/m, Max. load=100ton/m.Delivery with: clamping plate TK-033.Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally.Adapter for New Standard to European Style I (ES I) or American Style (AS)

Specifications

ConditionNew
Type/lengthTSU-022/1 515mm, TSU-022/4 150mm, TSU-E2M-022/1 515mm
SafetySafety pins, E2M®
Weight30.16kg/m
Weight30.16kg/m
