GAA-500

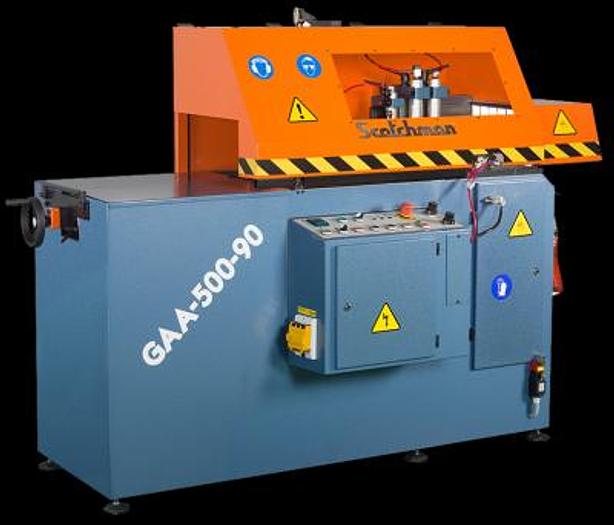

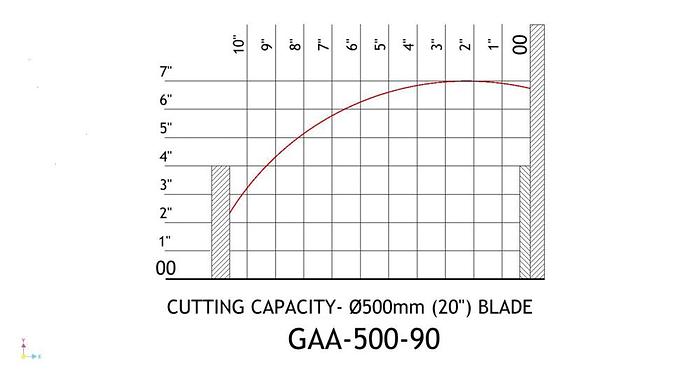

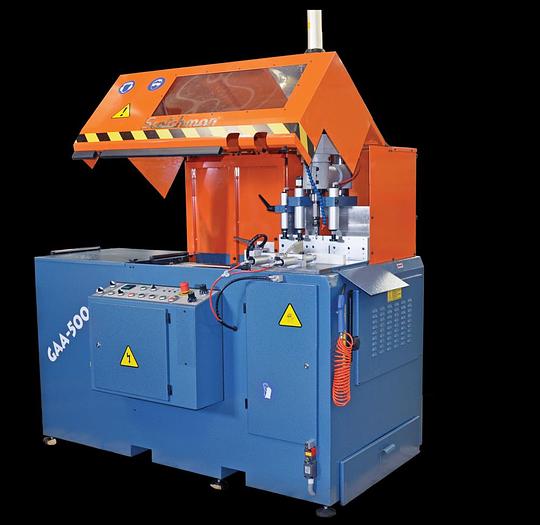

This large capacity up-cut saw has an automatic or semi-automatic operation and features a 500 mm (20") diameter carbide tipped blade for cutting non ferrous materials at 90° up to 6" square or round and 10" x 3" rectangle. Fits almost any profile and is capable of drilling and tapping holes with our DT20 option. The saw uses a robust shuttle feed design with an automatic feeder. Adjustable length selector from 0.200" to 20", unlimited stroke, and adjustable cutting and feeding speeds provide more versatility to customize the saw's operation to fit specific requirements. Three horizontal & three vertical pneumatic clamps secure the workpiece during the cutting process for high cut length tolerances, ±0.006" per index. This sawing system is built for industrial use and includes a 2-year warranty and lifetime customer support. Large capacity non ferrous saw Automatic or Semi-automatic operation Shuttle feed design cuts at 90 degrees only (20" + 20" max. double advance) Adjustable length selector from 0.200" to 20" Adjustable cutting & feeding speeds Three horizontal pneumatic clamps Three vertical pneumatic clamps Powered hood lift LED lighting Mist coolant lubrication system Emergency stop button One gallon coolant One 500 mm diameter carbide blade One blade wrench Air hose Base designed as a chip collection with two chip extraction ports Adjustable leveling pads Drill/Tap (20mm) and CNC features (optional) Meets CE standards Made in Spain
