AL3
AL3
or
Call 1-866-609-2672
Description
The AL3 notcher can notch 1-1/4" and 1-1/2" Schedule 40 Pipe at 90°.

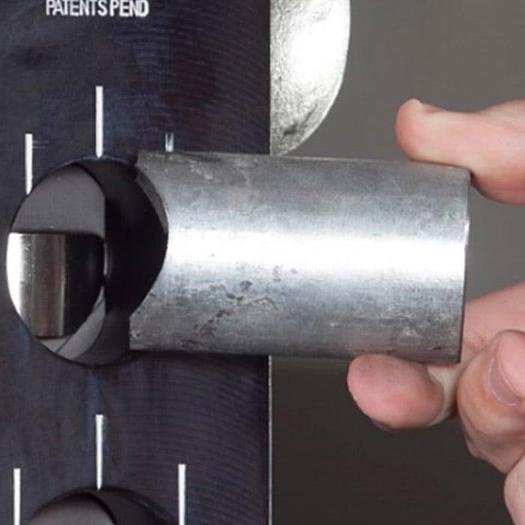

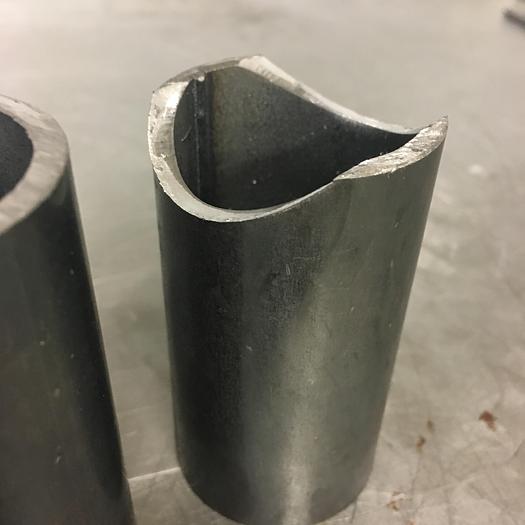

This hand-operated machine can easily be mounted to the wall, and is perfect for double corner joints. Each piece of tube or pipe is quickly and accurately notched and produces a gap-free fit ready for welding. Simply insert a pipe into the die block, pull the handle downward, a perfect 90 degree notch every time!
Notches 1-1/4" and 1-1/2" schedule 40 pipe
Portable and easy to mount to any stationary surface
Manual operation
Requires no change-over or costly attachments
Manufactured in the Netherlands
Specifications
Model | AL3 |
Condition | New |
O.D. Pipe Sizes | 1-1/4" and 1-1/2"; Schedule 40 |
Max. Wall Thickness | 0.154" steel0.098" stainless steel |
Profile Applications | Round Tube & Pipe |
Weight | 33 lbs (15 kg) |
Warranty | Three years on parts |
