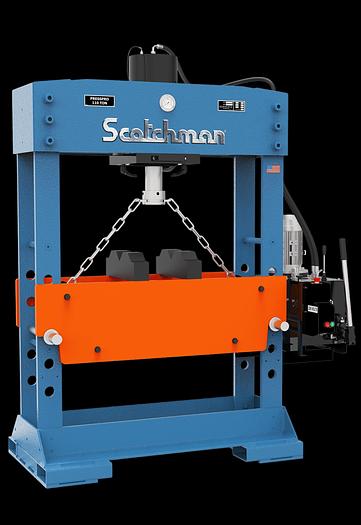

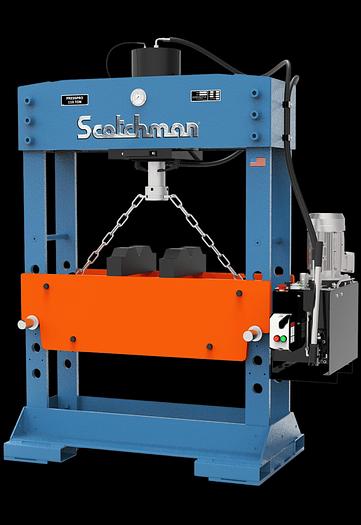

PressPro 176
PressPro 176
or
Call 1-866-609-2672
Description
This 176 ton workshop press is equipped with a movable cylinder (left-right) and an in-height adjustable working table.
The motorized hydraulic unit comes standard with a pressure regulator, 2 speeds, a joystick and a hand pump for precision pressing.
Smooth & precise, heavy-duty and versatile; These presses are industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
They're simple to use and solve a variety of demands to improve user’s productivity. The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible.
This H-Press meets CE Standards, is manufactured in the USA, and comes with our superior 3-year warranty.
Heavy duty all-steel construction
Industrial grade hydraulic system
Ram moves laterally for added versatility
3 Ram speeds
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Adjustable H-frame bed/table height offers increased versatility
Open side-frame design allows for material to pass through
Hydraulic-assist for table height adjustment to maximize operator safety
Set of V-blocks to simplify your pressing jobs
Pressure gauge to monitor force
Meets CE standards
Made in the USA
Specifications
Model | PressPro 176 |
Condition | New |
Press Force | 176 Ton, 160 mt |
Motor Options (must specify) | 230/460v, 3ph5 hp, 3.6 kW |
Ram Speed - Approach | 18 ipm, 7.48 mm/s |
Ram Speed - Press | 6 ipm, 2.40 mm/s |
Ram Speed - Return | 22 ipm, 9.35 mm/s |
Open Height (min.) | 9-1/2", 241 mm |
Open Height (max.) | 32", 813 mm |
Stroke | 15-3/4", |
Lateral Ram Slide | YES, Manual |
Width Between Uprights | 43-3/16", |
Width Between Table Channels | 17-1/16", |
Table Height | Adjustable, Manual with Hydraulic Assist |
Footprint (L x W) | 69-1/8" x 42-3/8", 175.5 x 107.5 cm |
Height Overall | 87", 221 cm |
Weight est. (includes V-blocks) | 3,680 lbs, 1,669 kg |
Warranty | Three years on parts |
