PressPro 110
PressPro 110
or
Call 1-866-609-2672
Description

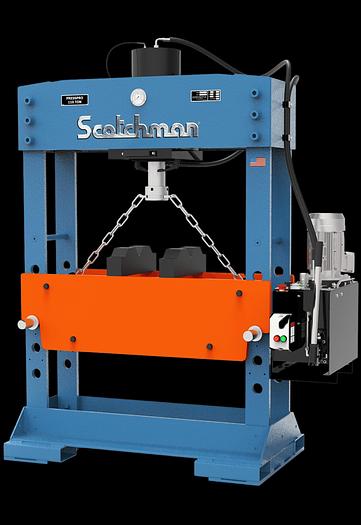

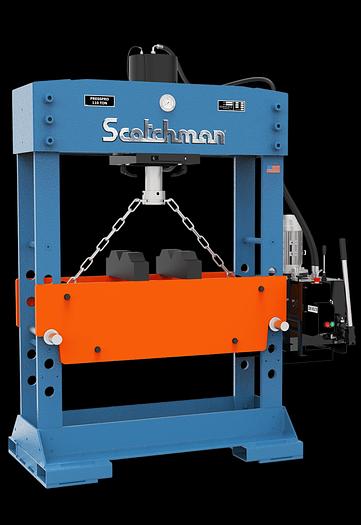

The 110 ton workshop press is our all-time best-seller! This 110-ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
Smooth & precise, heavy-duty and versatile; This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible
Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Heavy duty all-steel construction
Industrial grade hydraulic system
Ram moves laterally for added versatility
3 Ram speeds
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Adjustable H-frame bed/table height offers increased versatility
Open side-frame design allows for material to pass through
Hydraulic-assist for table height adjustment to maximize operator safety
Set of V-blocks to simplify your pressing jobs
Pressure gauge to monitor force
Meets CE standards
Made in the USA
Specifications
Model | PressPro 110 |
Condition | New |
Press Force | 110 tons, 100 mt |
Motor Options (must specify) | 230/460v, 3ph3.5 hp, 2.6 kW |
Ram Speed - Approach | 18 ipm, 7.54 mm/s |
Ram Speed - Press | 6 ipm, 2.47 mm/s |
Ram Speed - Return | 21 ipm, 9.06 mm/s |
Open Height (min.) | 8-1/4", 210 mm |
Open Height (max.) | 29-3/4", 755 mm |
Stroke | 15", |
Lateral Ram Slide | YES, Manual |
Width Between Uprights | 43-1/4", |
Width Between Table Channels | 14-1/4", |
Table Height | Adjustable, Manual with Hydraulic Assist |
Footprint (L x W) | 67-1/2" x 41", 171.5 x 104 cm |
Height Overall | 83-3/8", 212 cm |
Weight (includes V-blocks) | 2,138 lbs, 970 kg |
Warranty | Three years on parts |
