PressPro 110W
PressPro 110W
or
Call 1-866-609-2672
Description

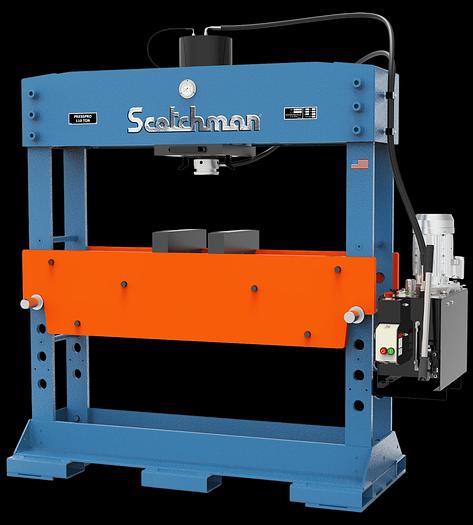

This 110 ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials. It is equipped with a movable cylinder (left to right) and an in-height adjustable working table. In addition, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible
Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Heavy duty all-steel construction
Industrial grade hydraulic system
Extra-wide working width for handling larger materials
Ram moves laterally for added versatility
3 Ram speeds
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Adjustable H-frame bed/table height offers increased versatility
Open side-frame design allows for material to pass through
Hydraulic-assist for table height adjustment to maximize operator safety

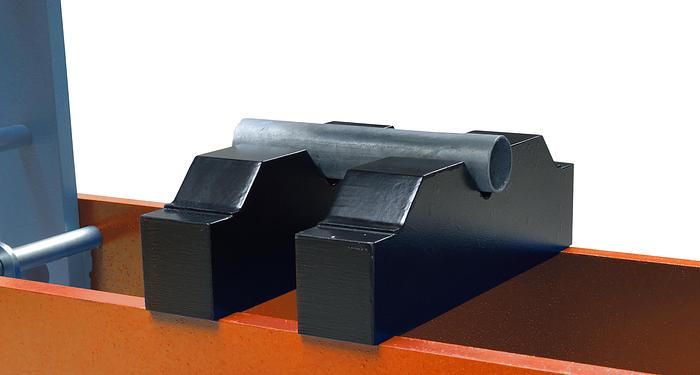

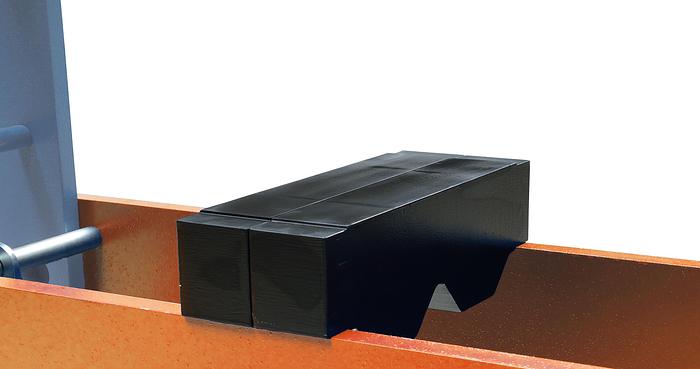

Set of V-blocks to simplify your pressing jobs
Pressure gauge to monitor force
Forklift accommodations
Meets CE standards
Made in the USA
Specifications
Model | PressPro 110W |
Condition | New |
Press Force | 110 ton, 100 mt |
Motor Options (must specify) | 230/460v, 3ph3.5 hp, 2.6 kW |
Ram Speed - Approach | 18 ipm, 7.54 mm/s |
Ram Speed - Press | 6 ipm, 2.47 mm/s |
Ram Speed - Return | 21 ipm, 9.06 mm/s |
Open Height (min.) | 8-1/4", 210 mm |
Open Height (max.) | 29-3/4", 755 mm |
Stroke | 15", |
Lateral Ram Slide | YES, Manual |
Width Between Uprights | 59", |
Width Between Table Channels | 14-1/4", |
Table Height | Adjustable, Manual with Hydraulic Assist |
Footprint (L x W) | 83-1/8" x 41", 211 x 104 cm |
Height Overall | 83-3/8", 212 cm |
Weight (including V-blocks) | 2,524 lbs, 1,154 kg |
Warranty | Three years on parts |
