AL100U-02

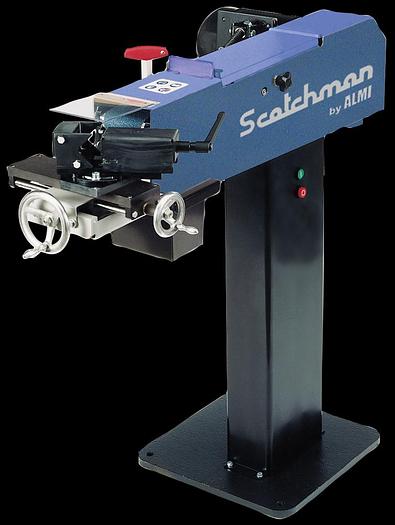

The AL100U-02 produces gap-free fits ready for welding, with minimal vibration. Angle range is straight=90° to 30° in tube or pipe from 1/2" to 3" O.D. It's equipped with handwheels for feed handle & vise that can be adjusted right or left. Grinds notches of any desired angle from 90 degrees to 30 degrees in seconds Two Axis precision crossfeed table with both handwheels and hand lever feed handle Smooth operation with minimal vibration Heavy duty frame and base construction Mandrel centerline adjustment One vise holds all pipe and tube sizes Top-mounted deburring surface creates a multifunctional machine Easy setup with vise graduated in degrees 13 Mandrel sizes available to ensure a correct gap-free fit Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2") Tool-free belt and mandrel change over for easy transition Manufactured in the Netherlands
