PressPro 66
PressPro 66
or
Call 1-866-609-2672
Description

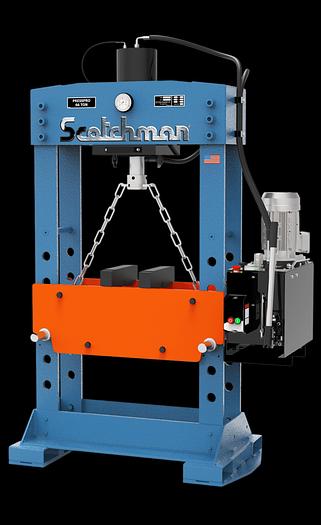

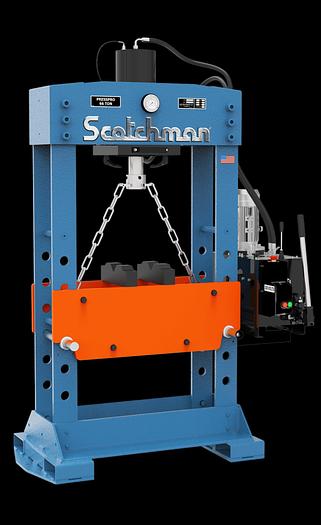

This motorized 66 ton workshop press has a movable cylinder (left-right) and an in-height adjustable working table. Equipped with pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible
Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Heavy duty all-steel construction
Industrial grade hydraulic system
Ram moves laterally for added versatility
3 Ram speeds
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Adjustable H-frame bed/table height offers increased versatility
Open side-frame design allows for material to pass through
Hydraulic-assist for table height adjustment to maximize operator safety
Set of V-blocks to simplify your pressing jobs
Pressure gauge to monitor force
Meets CE standards
Made in the USA
Specifications
Model | PressPro 66 |
Condition | New |
Press Force | 66 Ton, 60 mt |
Motor Options (must specify) | 230/460v, 3ph2.5 hp, 1.8 kW |
Ram Speed - Approach | 21 ipm, 8.69 mm/s |
Ram Speed - Press | 5 ipm, 2.07 mm/s |
Ram Speed - Return | 25 ipm, 10.79 mm/s |
Open Height (min.) | 6-5/16", 160 mm |
Open Height (max.) | 31-15/16", 811 mm |
Stroke | 15", |
Lateral Ram Slide | YES, Manual |
Width Between Uprights | 29-1/2", |
Width Between Table Channels | 11-15/16", |
Table Height | Adjustable, Manual w/Hyd. Assist |
Footprint (L x W) | 57-3/4" x 39-1/4", 147 x 100 cm |
Height Overall | 82-3/4", 210 cm |
Weight (includes V-blocks) | 1,190 lbs, 540 kg |
Warranty | Three years on parts |
