Description

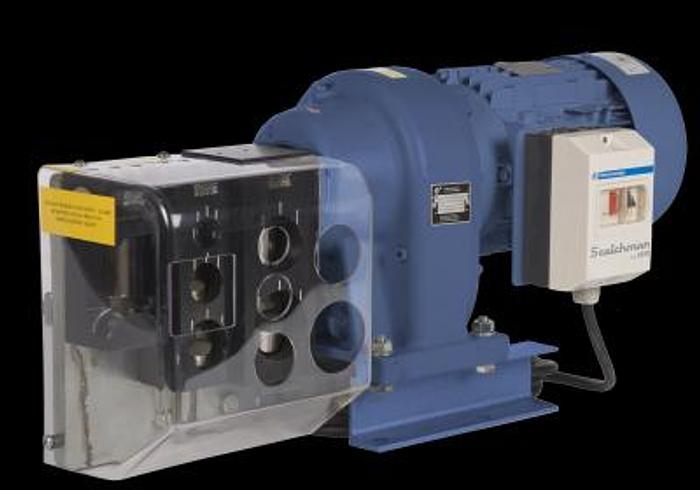

The AL1-2U is equipped to notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness; plus it's equipped with a vent notch to quickly create a uniform vent-notch for galvanizing outflow.

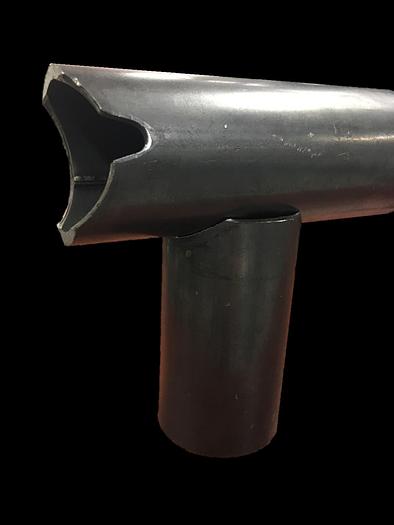

Perfect for double corner joints; quickly and accurately make saddle notches that are prepped and ready for welding.
Equipped to notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness

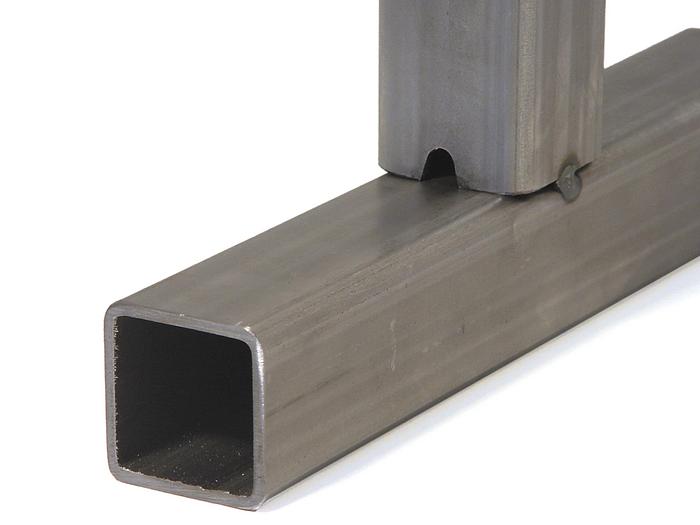

Includes vent notcher to quickly create a uniform vent-notch for galvanizing outflow
Safety guards to surround and protect notching dies
Electric operation
Manufactured in the Netherlands
Specifications
| Model | AL1-2U |
| Condition | New |
| O.D. Pipe Sizes | 3/4", 1", 1-1/4", 1-1/2" and 2"; Schedule 40, |
| Max. Wall Thickness | 0.197" steel0.118" stainless steel, 5 mm steel3 mm stainless steel |
| Vent Notch | yes, |
| Profile Applications | Round Tube & Pipe, |
| Motor | 3-1/2 hp230/460v, 3ph (must specify), 2.2 kW |
| Dimensions (L x W x H) | 30" x 13-1/2" x 11-1/2", 762 x 343 x 292 mm |
| Shipping Weight | 230 lbs, 104 kg |
| Warranty | Three years on parts |
