CPO 315 RFA

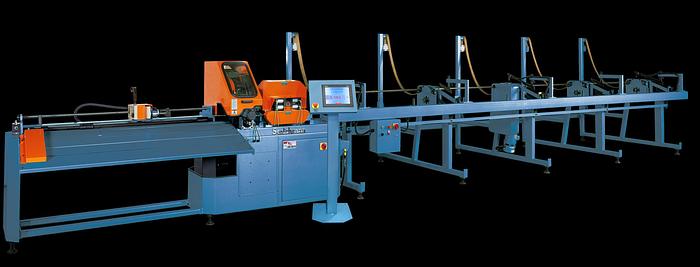

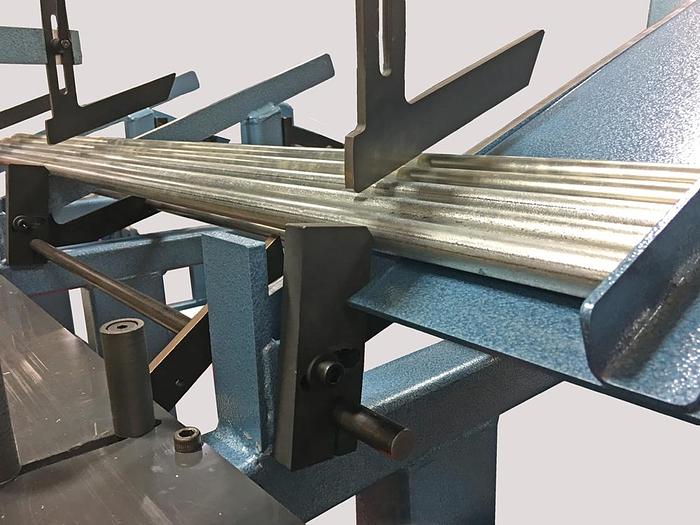

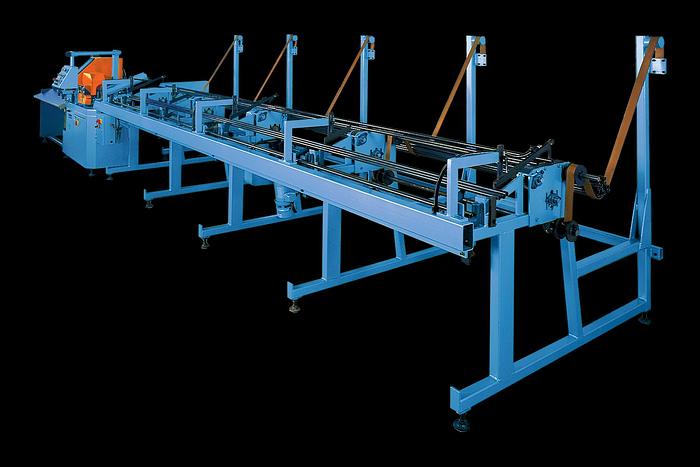

The CPO 315 RFA (Roll Feed Automatic) cold saw provides uninterrupted straight 90° cutting on tubes, solids, and extrusions while supplying precise high quality cuts, and is an ideal saw for high volume & long length applications that require clean accurate cuts. This machine's touch screen controls and other features decrease cycle times and make this saw fast & easy to operate. The RFA can store profile settings such as speeds & feeds, which make changing material sizes even faster. This automatic sawing system accepts a 315 mm sawblade and can easily cut up to 3" round tube, 1-3/4" solid round mild steel, and 3" solid round aluminum, copper, plastic or other nonferrous materials at a 90 degree straight cut. The RFA saw comes equipped with either a standard supply track or a full bundle loading attachment. Both systems allow the saw to automatically load, trim, cut, and sort part lengths up to 120 inches and hold a ±0.006" tolerance in length of tubing up to 3" in diameter while continually providing a squareness tolerance of ±0.002" per diameter inch. With optional equipment you can feed directly into a deburring machine or we can customize form jaws to handle thin wall applications without distortion. This American made automatic roll feed saw by Scotchman is available as a ferrous (steel cutting) version or a nonferrous (aluminum, copper, plastic cutting) version, designed to your specifications, and comes with a 2-year warranty and lifetime customer service & support. Fully automatic cycle (available In ferrous or non-ferrous) Touch screen controls actuate the complete cycle Interlocking safety hood Emergency stop button Automatic loading and trim cut of each new bar Automatic tube ejection Trim and remnant gate Clamping both sides of blade - highest quality, burr-free cuts Blade guides for accurate tolerances (ferrous model) Adjustable stroke control on the saw head Adjustable down feed control on the saw head for feed rate Length scale in both inches and metric Digital read-out for quick and easy fine adjustment of length setting Piece counter Mist coolant lubrication system One saw blade One gallon coolant Complies with ANSI B11.10 safety standards Made in USA
