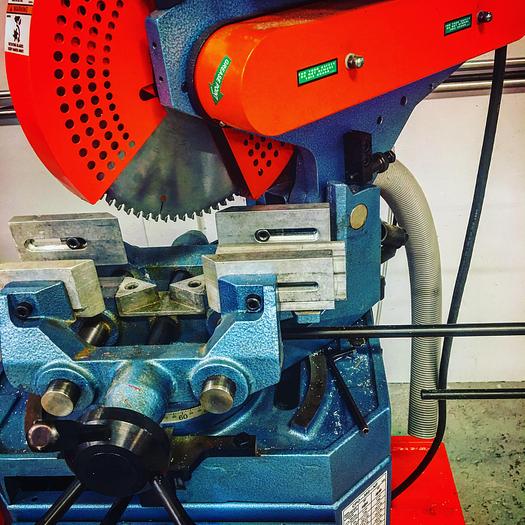

CPO 350 NF

CPO 350 NF
or
Call 1-866-609-2672
Description
This powerful American-made Circular Cold Saw is built to last and is the perfect machine for any fabrication shop cutting non-ferrous materials like aluminum, plastic, copper, etc.
The CPO350 NF coldsaw is designed to make extremely fast and accurate cuts through metal and features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts.
It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, and can slot and notch.
Accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.
Additional machine features include a chip drawer, mist coolant lubrication system, a 3,000 rpm motor and utilizes up to a 14" diameter (350mm) carbide tipped sawblade giving it the ability to cut 4-1/2" OD max round tube and 3" max round or square solid at 90 degrees.
The CPO 350NF saw is built with dependability and versatility in mind, with the quality you expect from a Scotchman; always backed by our 3-Year Warranty and lifetime customer support!
Pair this machine with a
Scotchman digital measuring system
to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.
Manual double self-centering vise assures burr-free cuts
Operator controlled trigger switch
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Positive-driven cogged belt system
Chip drawer
Mist coolant lubrication system
One 350 mm diameter carbide-tipped blade
One blade wrench
One gallon coolant
Complies with ANSI B11.10 safety standards
Made in USA
Specifications
Model | CPO 350 NF |
Condition | New |
Cutting Speed | 3,000 rpm, Motor Rate:5 hp, |
Maximum Cutting Capacities(Non-Ferrous & PVC ) | TUBINGRoundSquareRectangle, 90 Degree4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4", 45 Degree4-1/4" 4" x 4" 4" x 4" |
SOLIDRoundSquare | 90 Degree3" 3" x 3", 45 Degree2-1/2" 2-1/2" x 2-1/2" |
Motor Options (Factory Wired) | Specify:208/230/460v, 3 ph, , |
Maximum Diameter Blade | 350 mm, , |
Arbor Bore | 40 mm, , |
Pin Spacing | 4/12/64, , |
Width | 21-7/8", 55.5 cm, |
Depth | 43-1/2", 110.5 cm, |
Height (not including feed handle) | 56-1/4", 143 cm, |
Height (floor to vise) | 37-7/16", 95 cm, |
Shipping Weight (may vary) | 625 lbs., 283 kg, |
Warranty | Three years on parts |
