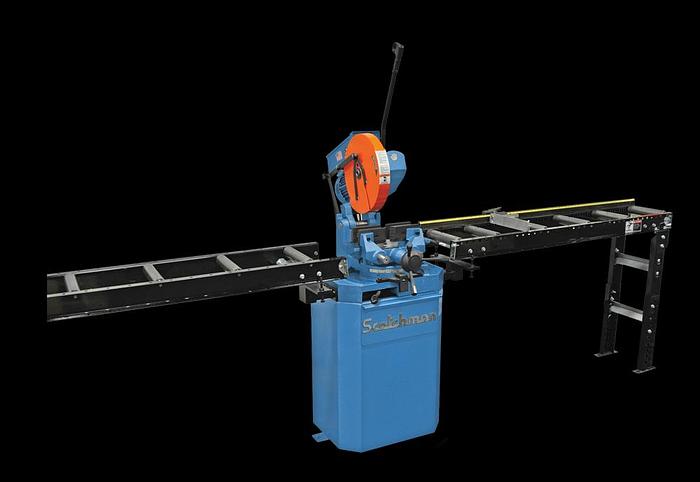

CPO 275 PKPD

CPO 275 PKPD

Description

This semi-automatic circular cold saw has a pneumatic power down feed with electric controls, a powered clamp and an emergency stop button. The powered clamp is a double self-centering, air-operated material vise to ensure safe, accurate, fast and efficient cuts. Like all Scotchman cold saws, the CPO 275 PK PD is designed to make extremely accurate cuts, without producing any heat, sparks or burrs. With 180 degrees of mitering capability and a miter-locking device that makes quick, accurate setting stops at 45° left, 90° straight, and 45 degrees right. This saw is precise with an accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts. This saw accepts up to a 10-3/4" (275mm) high speed steel HSS saw blade and can cut 3-3/8" max round tube at 90° and 1-1/2" max round or square solid at 90 degrees. Featuring two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275PKPD also comes with built-in chip drawer and a seven-gallon coolant tank. Increase your shop's efficiency by pairing this American made machine with a Scotchman automatic measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length. This machine is made in the USA and built with dependability and versatility in mind; plus it's backed by our 3-year warranty. Air operated double self-centering vise assures burr-free cuts Operator controlled trigger switch Capable of slotting Double reduction, hardened and ground worm and wheel gear boxChip drawer 7 Gallon flood coolant tank with pump One 250 mm diameter HSS blade One blade wrench One gallon coolant Complies with ANSI B11.10 safety standards Made in USA

Specifications

ModelCPO 275 PKPD
ConditionNew
Cutting Speeds(must specify when ordering)LT (Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe, LT (Low Turn)30 / 60 rpm, Motor rate:2 hp
HT (High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous materialHT (High Turn)60 / 120 rpm, Motor rate:1.5 hp
SS (Single Speed) - designed for 220v 1ph applicationsSS (Single Speed)60 rpm, Motor rate:2 hp
Maximum Cutting Capacities(based on mild steel)TUBINGRoundSquareRectangle, 90 Degree3-3/8"3" x 3" 3" x 2-3/8", 45 Degree2" 2" x 2" 2" x 2"
SOLIDRoundSquare90 Degree1-1/2"1-1/2" x 1-1/2", 45 Degree1" 1" x 1"
Motor Options (Factory Wired)Specify:LT & HT: 208/230/460/575v, 3 phSS: 220v, 1 ph, ,
Maximum Diameter Blade275 mm, ,
Arbor Bore32 mm, ,
Pin Spacing2/8/45, ,
Width21-7/8", 55.5 cm,
Depth43-1/2", 110.5 cm,
Height (not including feed handle)53-1/4", 135 cm,
Height (floor to vise)36-1/8", 92 cm,
Shipping Weight (may vary)670 lbs., 304 kg,
WarrantyThree years on parts
