CPO 275

CPO 275

Description

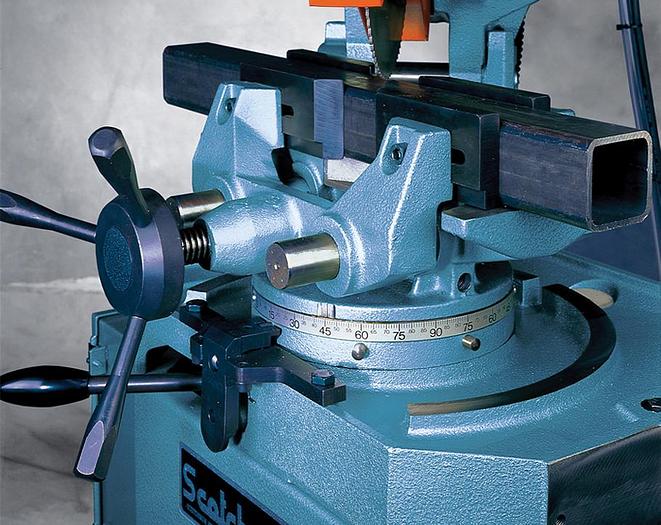

The CPO 275 circular cold saw is designed to make extremely accurate cuts through steel, without producing any sparks or burrs, and features a double self-centering vise to ensure burr-free cuts. This saw has 180° of mitering capabilities and a built-in miter-locking device that makes quick, accurate stops at 45° left, 90° straight, and 45° right. This saw accepts up to a 10-3/4" (275mm) HSS saw blade and can cut 3-3/8" max round tube at 90 degrees and 1-1/2" max solid at 90 degrees. With accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts. This machine is made in the USA and built with dependability and versatility in mind; plus it's backed by our 3-year warranty. Manual double self-centering vise assures burr-free cuts Operator controlled trigger switch Capable of slotting Double reduction, hardened and ground worm and wheel gear box Chip drawer 7 Gallon flood coolant tank with pump One 250 mm diameter HSS blade One blade wrench One gallon coolant Complies with ANSI B11.10 safety standards Made in USA

Specifications

ModelCPO 275
ConditionNew
Cutting Speeds(specify when ordering)LT(Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe, LT30 / 60 rpm, Motor rate:2 hp
HT(High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous materialHT60 / 120 rpm, Motor rate:1.5 hp
SS(Single Speed) - designed for 220v 1ph applicationsSS60 rpm, Motor rate:2 hp
Maximum Cutting Capacities(with 275 mm blade)TUBINGRoundSquareRectangle, 90 Degree3-3/8"3" x 3"3" x 2-3/8", 45 Degree2"2" x 2"2" x 2"
SOLIDRoundSquare90 Degree1-1/2"1-1/2" x 1-1/2", 45 Degree1" 1" x 1"
Motor Options(Factory Wired)Specify:LT & HT: 208/230/460/575v, 3 phSS: 220v, 1 ph, ,
Maximum Diameter Blade275 mm, ,
Arbor Bore32 mm, ,
Pin Spacing2/8/45, ,
Width21-7/8", 55.5 cm,
Depth43-1/2", 110.5 cm,
Height (not including feed handle)53-1/4", 135 cm,
Height (floor to vise)36-1/8", 92 cm,
Shipping Weight(may vary)550 lbs., 279 kg,
Miter locking device stops45 degree left, 90 degree and 45 degree right
WarrantyThree years on parts
