DO8514-20M

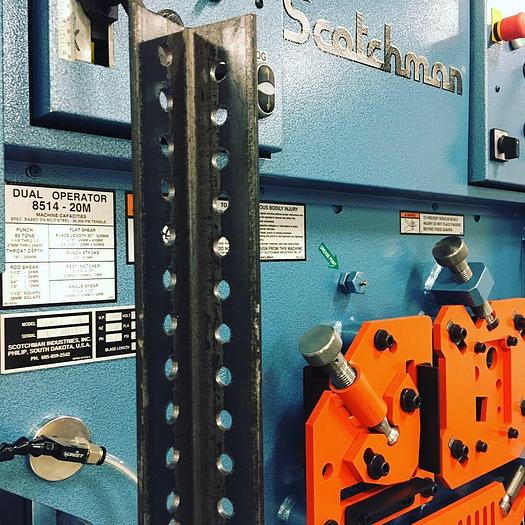

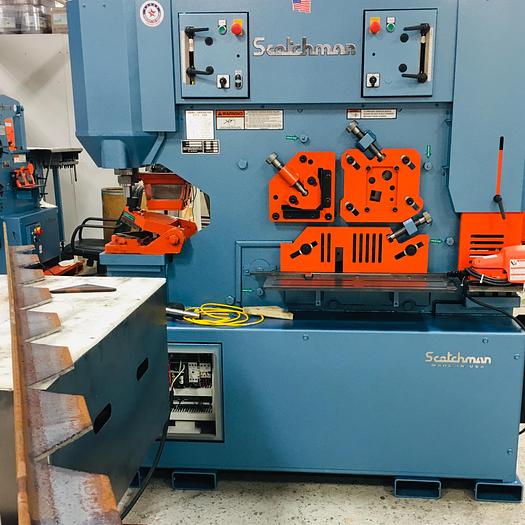

A dual-operator, fully-integrated ironworker features built-in tools and is best suited for repetitive operations and higher volume projects. Run two operations, such as punching and notching, simultaneously! The dual operator 85-ton ironworker machine has a hydraulic system designed with two pumps allowing two operators to use the machine at the same time and ensures that both operations have full hydraulic pressure and speed. With an 85-ton punch capacity, the DO85 can punch a 1-1/16" hole in 1" thick mild steel. The DO 8514-20M has many standard features that include: 6" x 6" x 1/2" angle shear, rod shear that will shear 1-1/2" round and 1-1/4" square rod, and a rectangular notcher that can notch 3" x 5" x 1/2". The 20" flat bar shear features a low rake angle and has the ability to shear up to 1" x 12" and 3/4" x 20" material. This machine is ideal when shearing lots of channel iron and is capable of accepting additional tooling such as press brakes, tube shears, picket tools, and special custom-built tools. This American-made ironworker is built tough and utilizes a tandem hydraulic system with electric valves & remote foot pedals for ease of use, two adjustable electric stroke controls with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support! Dual Operator, 5 Stations Dual operator allows for two operators to work at the same time at full capacity 85 Ton punch station Keyed punch ram for safety Punch gauging table with fence and scale Die holder complete with 2" die insert Punch nut with wrench & stripper Adjustable swing-away stripper LED work lights now standard equipment! Punch jog control Two adjustable electric stroke controls with scale Two electric remote foot pedals Tandem Hydraulic Pump Two valves Slug-less angle shear Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake Flat bar shear Shear table with miter fence Rod shear Slug receptacles Electrical box supplied with emergency palm button and lock-out tag-out accommodations All guards necessary to comply with ANSI B11.5 safety standards Forklift accommodations Made in USA
