Description
It's portable, versatile, and designed for in-plant or on-the-job operation!

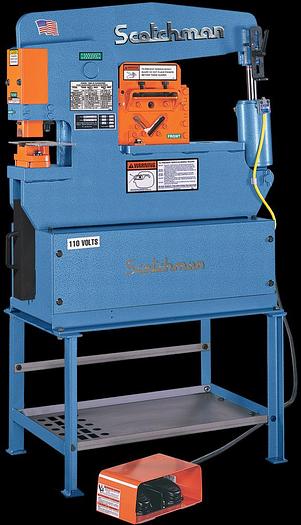

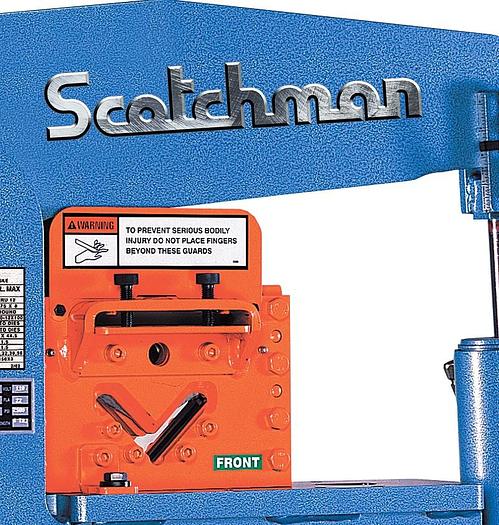

With a 45-ton punching capacity, this ironworker can punch 1-1/8" hole through 1/2" mild steel and runs on 110-volt power from your standard wall outlet or generator. A 3-in-1 combination tool consisting of a flat bar shear, rod shear, and an angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs.
This
American-made
ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.
Single Operator, 4 Stations

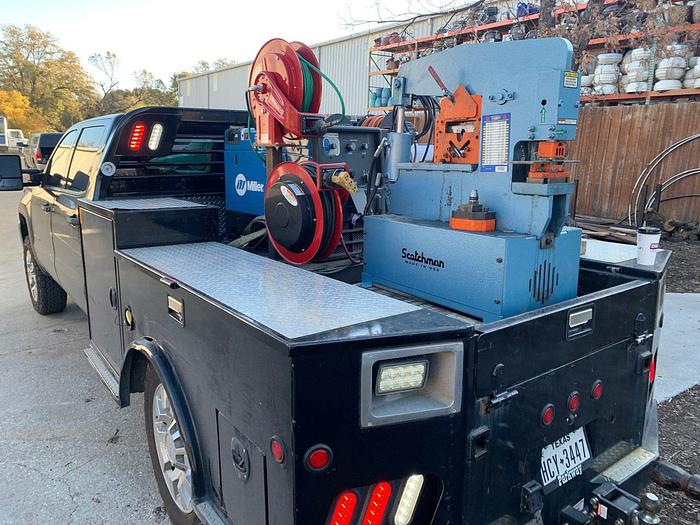

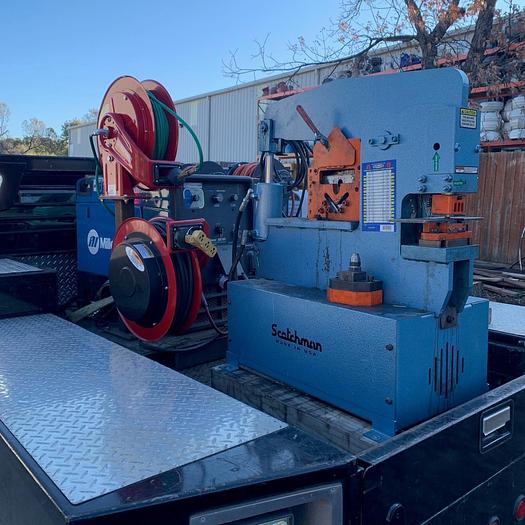

Designed to be portable for job-site operation
45 Ton punch station
Keyed punch ram for safety
2" Die holder
Punch nut with wrench & stripper
Adjustable electric stroke control with scale
Electric remote foot pedal
Tool table work area
Slug receptacle
Machine stand with punch & die and tooling storage rack
All guards necessary to comply with ANSI B11.5 Safety Standards
Made in the USA
Specifications
| Model | Porta Fab 45 |
| Condition | New |
| Punching Capacity | 45 Ton (41 mt)1-1/8" in 1/2" (28mm in 12mm), |
| Special Tooling | 2-1/4" Max. Dia., 57 mm Max. Dia. |
| Throat Depth | 4-1/4", 108 mm |
| Flat Bar Shear | 6" Length1/2" x 4"3/8" x 6", 152 mm 12 x 102 mm 10 x 152 mm |
| Angle Shear 90 degree | 3" x 3" x 5/16", 76 x 76 x 8 mm |
| Angle Shear 45 degree | 2" x 2" x 1/4", 51 x 51 x 6 mm |
| Round Rod Shear | 3/4", 19 mm |
| Brake 8" | 25 Ton, 23 mt |
| Brake 12" | 20 Ton, 18 mt |
| Open End Brake | Max. 1/4" x 3" [Flat or Angle Iron], 6 x 76 mm |
| Pipe NotcherSchedule 40 | 3/4", 1", 1-1/4", 1-1/2", 2", |
| Rectangle Notcher | 2" x 1-3/4" x 1/4", 51 x 44 x 6 mm |
| 90 degree V-Notcher | 6" x 6" x 1/8", 152 x 152 x 3 mm |
| Rod ShearRound (max.)Square (max.) | 5 Cavity - 1/4" to 1"1 Cavity - 1/4" to 3/4", 6 to 25 mm6 to 19 mm |
| Unistrut Shear | Samples Required, |
| Square Tube Shear | 1/2" to 1"12 gauge, 12 to 25 mm0.105" / 2.7 mm |
| Picket Tool | 1/2", 3/4" & 1"16 gauge, 12, 19, & 25 mm0.06" / 1.5 mm |
| Weld Coupon Bender (max.) | 2" wide x 3/8", 51 mm x 10 mm |
| Strokes per minute in light material | 10 spm [Punch Station], 1/4" Stroke |
| Strokes per minute in heavy material | 4 spm [Punch Station], 3/4" Stroke |
| Hydraulics | 2,500 psi, 172 bar |
| Motor Standard | 2 hp 110v, |
| Motor Optional | 2 hp 220v, 1 ph, 1.49kW |
| Dimensions | L: 38-1/4"W: 20"H: 39-1/4", L: 97 cmW: 51 cmH: 100 cm |
| Shipping Weight (may vary) | 710 lbs., 322 kg |
| One round punch & die | max. diameter 1" |
| Three-in-One Combination Tool | Angle Shear, Bar Shear & Rod Shear |
| Warranty | Three years on parts |
