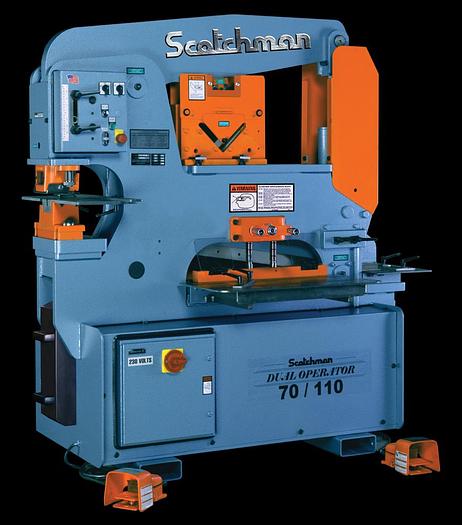

DO70/110-24M

A dual-operator ironworker is often the best option when two simultaneous operation (e.g. punching and notching) are required. The dual operator 70-ton ironworker machine (DO70) has a hydraulic system designed with two pumps allowing two operators to use the machine at the same time and ensures that both operations have full hydraulic pressure and speed. The 70-ton capacity punch and a 9" throat depth, which can punch a 1-1/8" hole in 3/4" thick mild steel. Standard features include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 4" through 1/2" material. The 24" flat bar shear features a low rake angle and has the ability to shear up to 1" x 6" and 3/8" x 24" mild steel. This versatile ironworker allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs! This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support! Dual Operator, 5 Stations Dual operator allows for two operators to work at the same time at full capacity 70 Ton punch station Keyed punch ram for safety Punch gauging table with fence and scale Die holder complete with 2" die insert Punch nut with wrench & stripper Adjustable swing-away stripper LED work lights now standard equipment! Jog control Two adjustable electric stroke controls with scale Two electric remote foot pedals Tandem Hydraulic Pump Two valves Angle shear Rectangle notcher with table, scale and guides Flat bar shear with sabre blade Shear table with miter fence Tool table work area Slug receptacles Electrical box supplied with emergency palm button and lock-out tag-out accommodations All guards necessary to comply with ANSI B11.5 safety standards Forklift accommodations Made in USA
